Description
UNIVERSAL – FITS MANY TURBO DIESEL APPLICATIONS
The Turbosmart TS-0304-1001 & TS-0304-1002 Diesel Blow Off Valve System is an all-in-one kit for adding a Blow Off Valve
(BOV) to protect the turbocharger on your high performance diesel. This kit includes the Turbosmart BOV controller, which is an
electronic device that controls the pressure signal to the BOV. It works by detecting a negative voltage change in throttle position.
It then energizes a solenoid to vent all of the air out of the BOV cap, causing a pressure differential between the piston of the
BOV and the cap which will vent pressure from the intake system.
Large diesel engines with larger turbochargers can experience compressor surge when coming off the throttle. The deceleration of the engine
can be a restriction on the outlet of the turbocharger causing compressor surge. This can be disastrous on a turbo system which is producing
high amounts of boost. The BOV controller can vent this build up of pressure, protecting the turbocharger. This can reduce the amount of
rebuilds on your turbocharger as well as improve acceleration between gears.

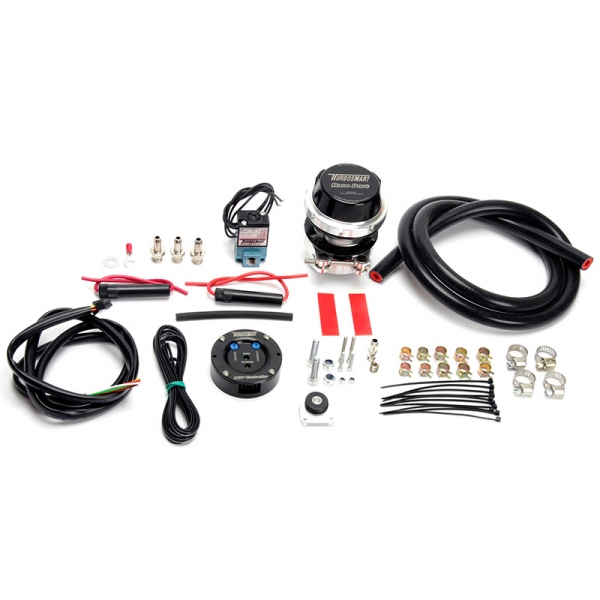

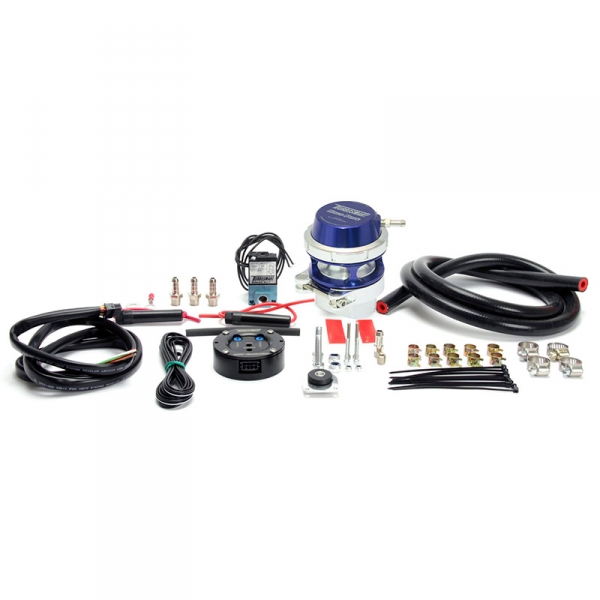

Kit includes: BOV Controller, Specific Race Port BOV, Wiring loom, Solenoid and bracket, Reinforced pressure tubing, Hose clamps and
mounting hardware
F EATUR E S :
Includes Turbosmart BOV Controller
Vents Buildup Of Turbo Boost Pressure
Electronically Controlled Through Turbosmart BOV Controller
Application Notes: Older models without a factory throttle position sensor such as the 12-valve Cummins, an external throttle position switch is
required. This must be sourced and installed by the end user. This product requires welding, cutting and fabrication for installation.
